Automatic Water Filling Production Line CIP Site Cleaning System with Water Tank



Automatic Water Filling Production Line CIP Site Cleaning System with Water Tank


Quick Detail:


• Place of Origin: Jiangsu, China (Mainland)
• Brand Name: Hyford
• Model Number: CIP system
• working temperature: 60-138
• maximum of centrfugal pump: 35m
• motor power: 2.2kw
• dimension: 3.0*1.4*2.0m
• Processing: Water Treatment System
• Processing Types: Water



Description:

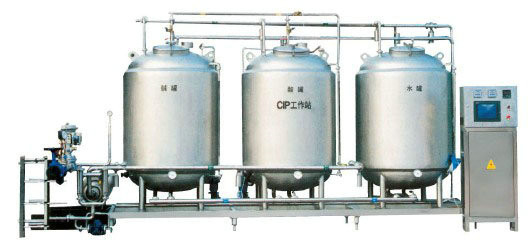

CIP Site Cleaning System
This system mainly consists of alkali tank, clean water tank, cut-off valve and centrifugal pump, etc.

★  Alkali tank and the pitcher

Alkali tank used to store cleaning fluid, in accordance with the cleaning process may require the preparation of cleaning liquid ingredients, concentration, and cans through the base of steam heating coil, cleaning fluid can be heated to the required temperature, atmospheric pressure is a tank containers , Made with stainless steel plate, a cylinder temperature thermometer, you can display the temperature in the corresponding tank, a cylinder under the output interface (that is the outlet of centrifugal pumps).
Fluid reservoir structure is cylindrical. Steam pipe use ordinary cylindrical mixing regulation, and adopt health control of food, considering the requirements of industrial hygiene, and liquid contact parts adopt stainless steel materials.
The cleaning device that set a fluid reservoir, from the positive side, the right side is alkali tank, the left side is clean water tank, and they are separately filled into alkali liquor, running water and pure water. Before using, alkali will be heated, heating mode adopted saturation steam (3kg/cm2), through the pipe heating directly. After using the liquid heating, according to certain procedures for filling machine or other devices to rinse circular automatically and in order to remove remnants materials of the pipe system and disinfection, sterilization.
★  Both sides of valve plug are installed silicone rubber ring, and the valve seats to form the seal, this silicone rubber stretch is good, high temperature, acid and alkali-resistant, sealed good performance.
★  According to the actual need, the machine can be manual operated. Press the "start" button of centrifugal pump, water pump can send out clean water according to needs of cleaning time, pump is sent by cleaning, according to the lye dissolving the size of the container, and pollution incrustation. After confirming the corresponding of alkali washing time, the lye is recycled.


Applications:

The automatic CIP system equipment is used to clean at site of material pipe of the industries like milk products,juice,beverage and etc.
 A centrifugal pump is used in CIP to convey cleaning liquid into aterial pipe and wquipment recipients to force the cleaning liquid to circulate to make cleaning without taking apart pipes or equipment.By this,capacity utilization rate of the machine can be improved and,at the same time,lessen intensity of labor


Specification


Technical Parameter of the CIP Site Cleaning System



Competitive Advantage:

1. make the production plan rationalize and the exaltation produce an ability.
2. can not only reach a good cleaning performance, but also can raise the quality of product.
3. can prevent cleaning homework from dangerous, economical labor force.
4. can save the steam, water and production cost.
5. can increase the usage time of the machine you want to clean and maintain.
6.This CIP cleaning system is detachable and movable.
