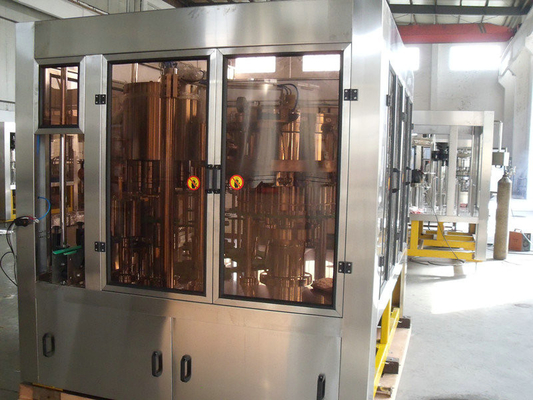

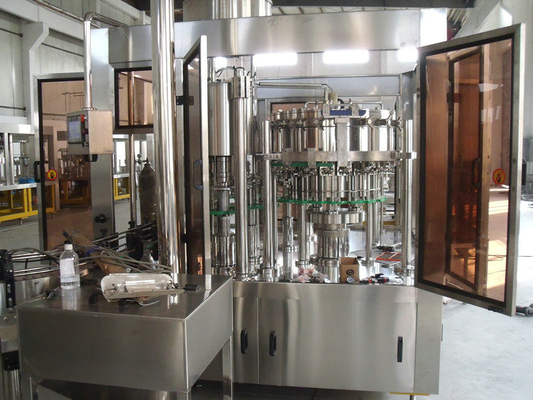

Carbonated Drink Filling Machine Balanced Pressure , Aluminum Can Filling Machinery 220V / 380V

220V / 380V Balanced Pressure Carbonated Drink Filling Machine , Aluminum Can Filling Machinery

Quick Detail:

1. Capacity: 1000-20000bottles per hour

2. Material: The material which contact directly with the liquid is the SUS304 (Food grade), made in china. The transmission mechanism and the gear are equipped with firing A4 carbon steel.

3. The 3-in-1 is mainly used to fill carbonated aerated beverage.

4. Motor: WAN NAN

5. Gear box: JIE BRAND

6. Invert speed control: MITSUBISHI

7. PLC: MITSUBISHI

8. Touch screen: WIEVIEW

9. Electrical parts: DELIX

10. Pneumatic component: DELIXI

11. Volume of PET bottle : 0.25L-2L

12. Diameter of bottle: 50-100mm

13. Height of bottle: 170-320mm

14. Cap diameter: plastic screw type cap diameter Φ30

15. Filling temperature: 3-6 degrees

16. Filling pressure: ≤0.15Mpa

17. Filling precision: ±2-3%

18. Pressure of washing: 0.2Mpa

19. Washing consuming water: 1200kg/h

20.  Gas consumption: 0.4m³ /min

Description

This carbonated soft drink filling machine is used to fill cola, sprite and other carbonated soft drink. All the machine part which contact with liquid is high quality stainless steel 304. The relative fittings are from international famous brand. This carbonated soft drink filling machine is comprised of rinsing, filling and capping system. The carbonated soft drink filling machine owns the reasonable, stable and safe design. Under the condition that the bottle neck size is the same, only the output star wheel needs to be changed if bottles are different. It improves the efficiency a lot.

Specifications:

Automatic Carbonated Drink Washing-Filling-Capping 3-in-1 Machine--Main data

Competitive Advantage of the Carbonated Soft Drink Filling Machine

1.Air Conveyor connects with bottle-in starwheels. Bottle neck holding transferred.

2.Clamp transferring technology varied bottle types.

3.With little abrasion. Stable Transferring. Easy to change bottles.

4.With ring type pressure bearing hydraulic cylinder.

5.With high filling speed and exact liquid level.

6.Excellent Stainless Steel. Electric Components are of world known brand. All achieve national sanitary standard.

7.The bottle-out starwheel is of screwdown shape. No need to adjust transferring chain's height to different bottles.

8.Easy to operate and maintain.

9.PLC and transducers and other main electric parts are of world famous brands, such as OMRON, MITSUBISHI etc.
