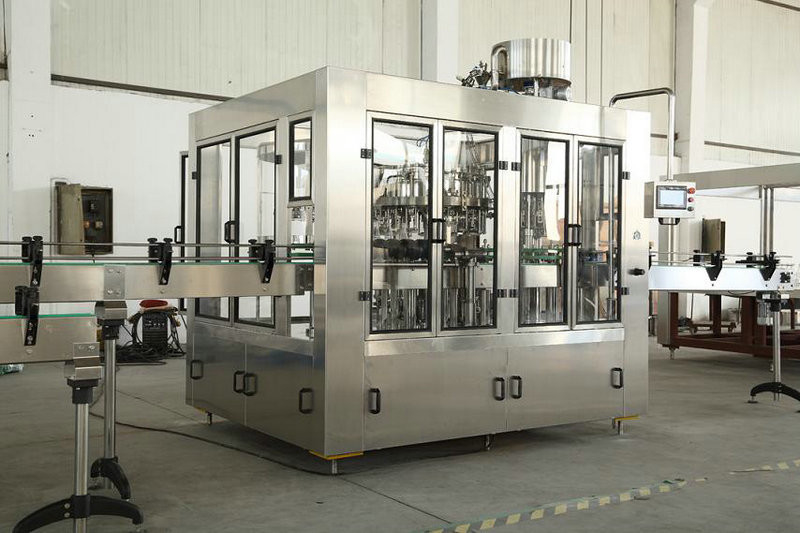

Auto Aseptic Glass Bottle Filling Machine For Sauce / Honey / Milk 4000B/h

Auto Aseptic Glass Bottle Filling Machine For Sauce / Honey / Milk 4000B/h

Quick Detail:

• Type: Filling Machine
• Condition: New
• Application: beverages
• Packaging Type: glass bottles,
• Automatic Grade: Automatic
• Driven Type: Electric
• Voltage: 220/380V
• Power: 3KW
• Place of Origin: Jiangsu, China (Mainland)
• Brand Name: Watechk
• Model Number: BPGF18-18-6
• Weight: 4000kg
• Certification: CE, ISO, SGS, BV
• After-sales Service Provided: Engineers available to service machinery overseas
• Material: High quality SUS304 stainless steel
• Filling Principle: Normal Pressure or Balanced Pressure or Hot Filling
• Capping: Screw Capping or Press Capping
• Number of Washing Heads: 18
• Number of Filling Heads: 18
• Number of Capping Heads: 6
• Capacity: 4000B/h for 500ml
• Shipment: by Sea/Train

Description:

This BPGF Series Washing-Filling-Capping 3-in-1 Machine is used for glass bottle filling. This glass bottle filling machine combines washing, filling and capping with complete automation, suitable for water, carbonated drink, juice and wine filling into glass bottles. The main machine adopts advanced PLC control technology, and the key electric components adopt international famous products, which makes the machine be convenient to operate with high automation. It is ideal preferred equipment for beverage makers.

 (1)Glass Bottle filling machine/glass bottle filling line includes: Washing-filling-capping 3 in 1 machine, lamp inspection, label Adhesive machine, inkjet printer, hot shrink film packer and conveyors. It is a full automatic production line.

(2)The glass bottle filling line is mainly used in the beverage filling operations. The three functions of bottle washing, filling and capping are composed in one body of the machine. The whole process is automatic.

(3)The glass bottle filling line is used in filling all kinds of beverage like water, carbonated drink, juice into glass bottles.

(4)The glass bottle filling operation is faster and more stable because the micro pressure filling operation of the new type is adopted. There the output and benefit of the machine is higher than the machinery of the same specifications.

(5)The advanced OMRON/MITSUBISHI programmed controller (PLC) is adopted to control the machine to run automatically while a transducer is used in the bottle -entering chains to adjust speeds and coordinated with the transducer of the main machine to make the operations of moving bottle forward steadily and reliably.

(6)It is convenient to operate with higher automation because every part of the machine is inspected to run with photo electricity, on the bases, the filling parts of the machine can be changed into filling methods of lower vacuum.



Specifications:

Automatic Glass Bottle Filling Line --Main data

Competitive Advantage of the Glass Bottle Filling Line

1.With little abrasion. Stable Transferring. Easy to change bottles.

2.With ring type pressure bearing hydraulic cylinder.

3.With high filling speed and exact liquid level.

4.Excellent Stainless Steel. Electric Components are of world known brand. All achieve national sanitary standard.

5.PLC and transducers and othe main electric parts are of world famous brands, such as OMRON, MITSUBISHI etc.

Hyford keeps 100% confident and try our best ability to satisfy customers' requirements with their selected products. Additionally, Hyford owns a professional aftersale customer service team. Therefore, If you have any inquiries or questions, please visit our store, have a look other products and leave your message. Your message will be highly appreciated! Welcome to Hyford!

Flowchart of glass bottle filling line

Application of glass bottle filling line

Packing of glass bottle filling line
