Beer Glass Bottle Filling Plant / Machine for Wine / Alcohol / Liquor , High Speed

Automatic Glass Bottle Filling Plant / Machine for Wine / Alcohol / Liquor , High Speed

Quick Detail:

• Type: Alcohol Filling Machine
• Condition: New
• Application: vodka, alcohol drink, wine
• Packaging Type: glass bottles,
• Automatic Grade: Automatic
• Driven Type: Electric
• Voltage: 220/380V
• Power: 2-6KW
• Place of Origin: Jiangsu, China (Mainland)
• Brand Name: Watechk
• Model Number: BHGF Series
• Weight: 3000-8000kg
• Certification: CE, ISO, SGS, BV
• After-sales Service Provided: Engineers available to service machinery overseas
• Material: High quality SUS304 stainless steel
• Filling Principle: Normal Pressure
• Number of Filling Heads: 12,18,24,32,40
• Shipment: by Sea/Train

Description:

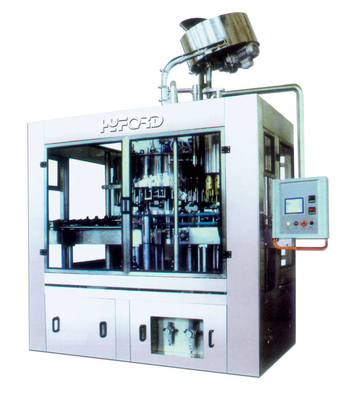

Introduction of the alcohol filling machine

This alcohol filling machine is mainly used for alcohol drink, wine filling and sealing into glass bottles, also according to customers' demands, to fill into PET bottles, which is with washing, filling and capping monobloc. It can fill with different capacities with different as requirements, together with other assistant equipments used in the line for alcohol production line.

Features of the alcohol filling machine

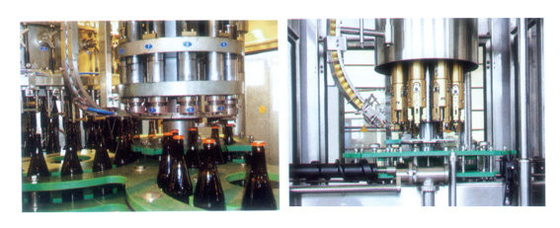

1. Alcohol filling valve adopts high precision mechanical filling valve, with the character of no bottle no vacuum pumping.

2. Open gear combinated gear box transmission, with no-off device. Frequency conversion velocity modulation device extends the speed modulating scope

3. This alcohol filling machine has self oil lubrication device so that the lubrication points could be lubricated regularly in time. The machine is of high efficiency, low noise and long life.

4. Centering guide is of double guide bar type, with the function of pre-covering.

5. Wine jar and capping head are driven by manual, also can be driven by electricity to fit different sizes of bottles.

6. The material height in the tank is controlled by electric probe to assure the precise liquid level.

Specifications:

Automatic Alcohol Filling Machine--Main data

Competitive Advantage:

1.With little abrasion and stable operation

2.With high filling speed and exact liquid level.

3.Excellent Stainless Steel. Electric Components are of world known brand. All achieve national sanitary standard.

4.PLC and transducers and other main electric parts are of world famous brands, such as OMRON, MITSUBISHI etc.
