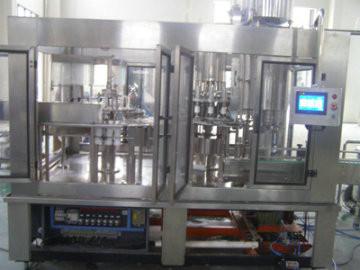

High Speed Beverage Filling Machine for Can or Bottle Hot Filling 2kw - 8KW

High Speed Beverage Filling Machine for Can or Bottle Hot Filling 2kw - 8KW


Quick Detail:


• Type: Filling Machine
• Condition: New
• Application: Juice, Tea Drink or Water Product
• Packaging Type: Bottles,
• Automatic Grade: Automatic
• Driven Type: Electric
• Voltage: 220/380V
• Power: 2-8KW
• Place of Origin: Jiangsu, China (Mainland)
• Brand Name: Watechk
• Model Number: RCGF Series
• Certification: CE, ISO, SGS, BV
• After-sales Service Provided: Engineers available to service machinery overseas
• Material: High quality SUS304 stainless steel
• Filling Principle: Hot Filling or Normal Pressure Normal Temperature Filling
• Number of Washing Heads: 12-32
• Number of Filling Heads: 12-32
• Number of Capping Heads: 4-15
• Production Capacity: 2000-15000B/h 500ml
• Shipment: by Sea/Train



Description:

Automatic Hot Filling Machine for Hot Drink is used to fill juice, tea and other non-gas beverage.The entire hot filling machine part which contact with liquid is high quality stainless steel 304. The relative fittings are from international famous brand.
The hot filling machine was equipped with suspension type air conveyor and frequency control of motor speed.

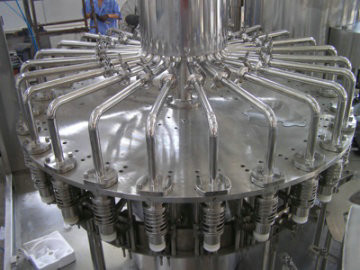

This automatic hot filling machine is comprised of rinsing, filling and capping system. Rinsing: grip the bottle neck, rotate filling plate, inverse bottle; internal rinsing and external spraying make bottles be cleaned completely. Filling: hot filling with holding bottle neck; the special backflow type of the filling valve can avoid leakage after filling and also control liquid level accurately. Capping: magnetic torque bottle holding type can minimize the cap damage rate and make the capping performance the best.

This automatic hot filling machine owns the reasonable, stable and safe design. Under the condition that the bottle neck size is the same, only the output star wheel needs to be changed if bottles are different. It improves the efficiency a lot.
We are the automatic hot filling machine manufacturer in China.

Specifications:


Automatic hot filling machine for hot drink like juice and tea drink--Main data


Competitive Advantage of automatic hot filling machine


1.Air Conveyor connects with bottle-in starwheels. Bottle neck holding transferred.

2.Clamp transferring technology varied bottle types.

3.With little abrasion. Stable Transferring. Easy to change bottles.

4.With ring type pressure bearing hydraulic cylinder.

5.With high filling speed and exact liquid level.

6.Excellent Stainless Steel. Electric Components are of world known brand. All achieve national sanitary standard.

7.The bottle-out starwheel is of screwdown shape. No need to adjust transferring chain's height to different bottles.

8.Easy to operate and maintain.

9.PLC and transducers and other main electric parts are of world famous brands, such as OMRON, MITSUBISHI etc.


Flowchart of hot filling machine for juice




Packing of hot filling machine for juice

Certificate of hot filling machine for juice
