Automatic Reverse Osmosis Sewage Water Filtration System , Drinking Water Treatment Plant
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Capacity: | 1T-30T | Application: | Commercial|Pharmaceutical |
|---|---|---|---|
| Material: | Stainless Steel | Processing Types: | Sewage Water |
| Product Name: | Water Filtration System | Type: | Reverse Osmosis |
| High Light: | industrial water treatment equipment,reverse osmosis water treatment |
||
Automatic Reverse Osmosis Sewage Water Filtration System , Drinking Water Treatment Plant
Quick Detail:
|
Processing |
Reverse Osmosis machine |
|
Condition |
New |
|
Place of Origin |
Jiangsu, China (Mainland) |
|
Brand Name |
Watechk |
|
Model Number |
FST |
|
Processing Types |
Water |
|
Voltage |
220/380V |
|
Power(W) |
1-10KW |
|
Weight |
300-2500kg |
|
Certification |
CE, ISO, SGS, BV |
|
Warranty |
12 months |
|
After-sales Service Provided |
Engineers available to service machinery overseas |
|
Material |
Hydranautics membrane, SS304 |
|
Certifications |
CE, ISO, BV, SGS |
|
Name |
Reverse osmosis device |
Description:

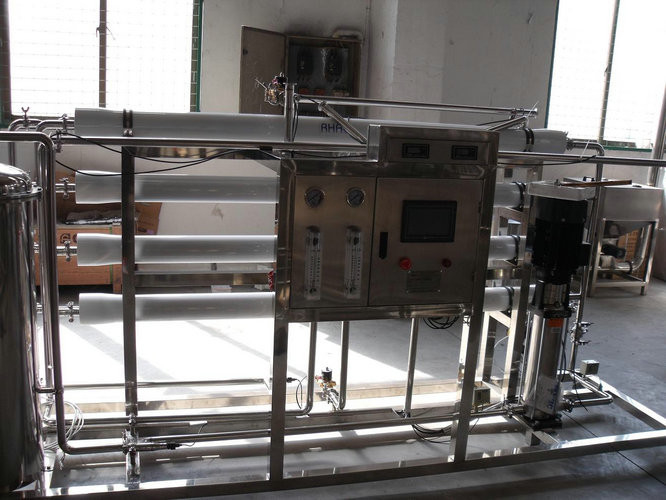

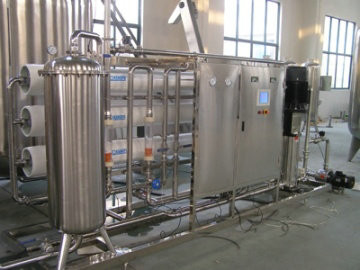

FST Series Reverse Osmosis Machine
The reverse osmosis machine is an equipment to purify the saline water with the action of pressure difference of semi permeable membrane. It is called reverse osmosis, as it is counter to natural penetration direction. Different materials have different osmotic pressures. The reverse osmosis method to adopt larger osmotic, purify and condense. Production capactiy:1-50T/h
More than 97% soluble salts and 99%glues, microbe, particulate and organic substances and etc can be removed with the reverse osmosis. It becomes the most idea equipment for the modem program of pure water, hyper pure water, and airspace water. The remarkable characteristics of the equipment are shown as lower energy consumption, no pollution, simple techniques, high water quality, easy operation and maintenance.
Applications:
The Reverse Osmosis Machine is used to purify the raw water and make the raw water clean enough for people drinking.
Specifications of the Reverse Osmosis Machine
|
Model |
Parameter |
Operation pressure |
recovery |
dimensions |
|||
|
|
Gal/day |
Ton/h |
Mpa |
% |
L |
W |
H |
|
FST-1 |
6000 |
1 |
1:1 |
50-60 |
2.6 |
0.9 |
1.5 |
|
FST-2 |
12000 |
2 |
1:1 |
60-70 |
2.6 |
0.9 |
1.8 |
|
FST-3 |
24000 |
4 |
1:1 |
60-70 |
2.6 |
0.9 |
2.2 |
Competitive Advantage of the Reverse Osmosis Machine
Standard features:
1) Prefilter, filter cartridge, high pressure pump (1st pass, 2nd pass), membrane
housing, RO membrane, low pressure switch, hight pressure switch, high pressure
gauge, low pressure gauge, TDS meter, flow meter, recycle adjust valve, recycle
check valve, post-pump adjust valve, concentrate adjust valve, inlet solenoid
valve, flushing solenoid valve, electrical control
2) Other specifications are available at the request of customers
3) with world-famous PLC control
