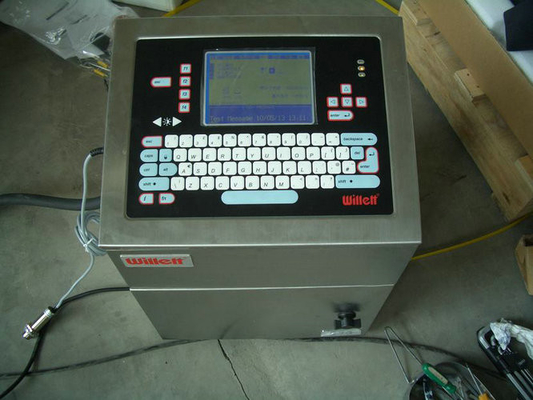

Inkjet Code Printer for Beverage Bottling Production Line , Glass or Plastic Bottle

Inkjet Code Printer for Beverage Bottling Production Line , Glass or Plastic Bottle

Quick Detail:

Model: Ym-2000

Power: 220V

Printing power: 50W

Working speed: 2000-15000T/h

Shape dimension: 118*45*180 cm

Total weight: 45Kg

Description:

Lines of printing: Up to 2(7x5, 7x7)

Character matrix: 7x5, 7x7, 10x7, 12 x 12, 16x10, 16x16

Variable characters/languages/logos/fonts

Reversal and inverse, four directional inkjet printings

Automatic show of products counting, batch number, shift numbers.

Bold: Up to 9 times

Spacing from print head bottom to the print surface: 2~12mm

Main Features

1. It can print 1-4 lines. and the character height reaches 1.8mm, 3.0mm, 8.0mm, 17mm with combined big and small characters.

 2. Printing speed reaches 100m/min,bar code 30m/min.

 3. Environmental protection solvent free ink. 125ml is capable of printing 30 million characters(3mm high).

 4. It is capable of storing 100 printing information, each information reaches 1600 characters.

 5. It is applicable for metal, plastic, glass, wood, paper and ceramics etc.

Applications:

1.can be printed on many material surfaces

2.High speed printing

3.can print 1-4 lines

4.Multicolor

Specifications:

Dimensions: 580mm x 420mm x 263mm (height x width x thickness)

Weight: 26kg

Umbilical length:3m

Power supply: 220VAC±15%

Rated Current: 2A

Ambient temperature: 5-45℃

Relative humidity: 30-95% non-condensing.

Competitive Advantage:

1. It can print 1-4 lines. and the character height reaches 1.8mm, 3.0mm, 8.0mm, 17mm with combined big and small characters.

 2. printing speed reaches 100m/min,bar code 30m/min.

 3. Environmental protection solvent free ink. 125ml is capable of printing 30 million characters(3mm high).

 4. It is capable of storing 100 printing information, each information reaches 1600 characters.

 5. It is applicable for metal, plastic, glass, wood, paper and ceramics etc.
