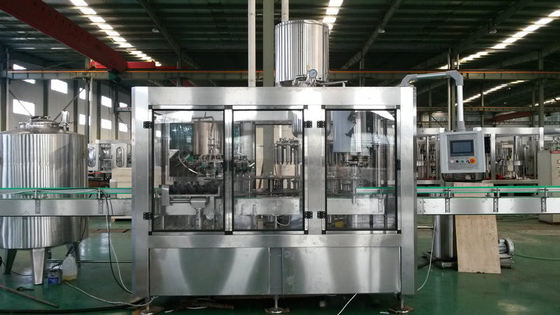

Automatic Electric Tea Drink Filling Machine , Hot Beverage Filling Plant 12 - 50 Head

Automatic Electric Tea Drink Filling Machine , Hot Beverage Filling Plant 12 - 50 Head


Quick Detail:

• Type: Filling Machine
• Condition: New
• Application: Juice, Tea Drink or Water Product
• Packaging Type: Bottles,
• Automatic Grade: Automatic
• Driven Type: Electric
• Voltage: 220/380V
• Power: 4KW
• Place of Origin: Jiangsu, China (Mainland)
• Brand Name: Watechk
• Model Number: RCGF24-24-8
• Weight: 4000kg
• Certification: CE, ISO, SGS, BV
• After-sales Service Provided: Engineers available to service machinery overseas
• Material: High quality SUS304 stainless steel
• Filling Principle: Hot Filling or Normal Pressure Normal Temperature Filling
• Number of Washing Heads: 24
• Number of Filling Heads: 24
• Number of Capping Heads: 8
• Production Capacity: 8000B/h 500ml
• Shipment: by Sea/Train


Description:

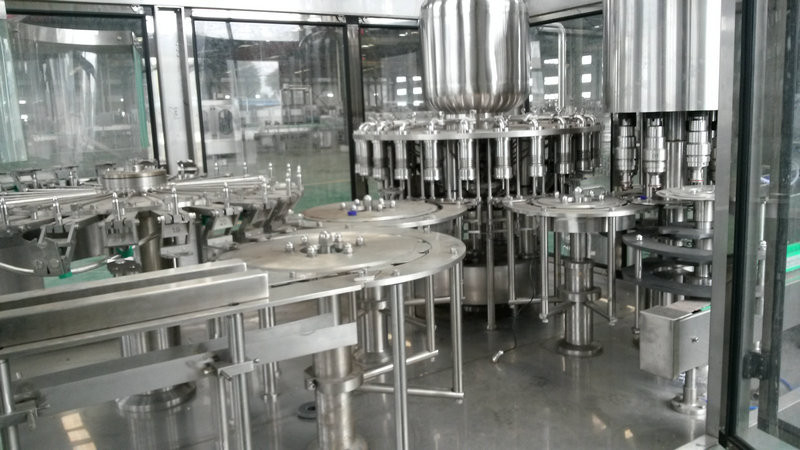

1)The hot filling machine is mainly used in the beverage filling operations. The three functions of bottle wash, fill and seal are composed in one body of the machine. The whole process is automatic.

2)The hot filling machine can also be used in hot filling if being installed with temperature controlling device. The handle of the machine can be freely and conveniently turned to adjust the machine to fill various types of bottles.

3) The hot filling operation is faster and more stable because the micro pressure filling operation of the new type is adopted. There the output and benefit of the machine is higher than the machines of the same specifications. The advanced OMRON programmed controller (PLC) is adopted to control the machine to run automatically while a transducer is used in the bottle -entering chains to adjust speeds and coordinated with the transducer of the main machine to make the operations of moving bottle forward steadily and reliably.

4) It is convenient to operate with higher automation because every part of the machine is inspected to run with photo electricity, on the bases, the filling parts of the machine can be changed into filling methods of lower vacuum.

5)The hot filling category of lower vacuum (Z type machine) is applicable in glass bottles, filling alcohol, soy and such like materials. The aluminum theft proof cap and plastic cap can be adopted. The machine is ideal-preferred equipment for beverage makers.

Specifications:


Automatic hot filling machine --Main data


Competitive Advantage: for hot filling machine

1.Air Conveyor connects with bottle-in starwheels. Bottle neck holding transferred.

2.Clamp transferring technology varied bottle types.

3.With little abrasion. Stable Transferring. Easy to change bottles.

4.With ring type pressure bearing hydraulic cylinder.

5.With high filling speed and exact liquid level.

6.Excellent Stainless Steel. Electric Components are of world known brand. All achieve national sanitary standard.

7.The bottle-out starwheel is of screwdown shape. No need to adjust transferring chain's height to different bottles.

8.Easy to operate and maintain.

9.PLC and transducers and other main electric parts are of world famous brands, such as OMRON, MITSUBISHI etc.



Application of Hot Filling Machine







Flow Chart of Hot Filling Machine, Hot Filling Line





Certificate of Hot Filling Machine
