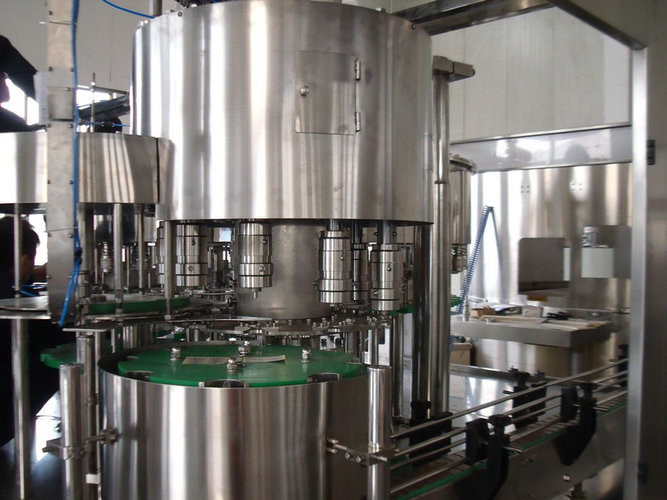

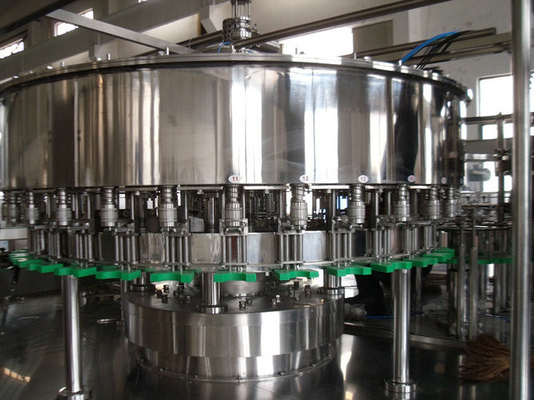

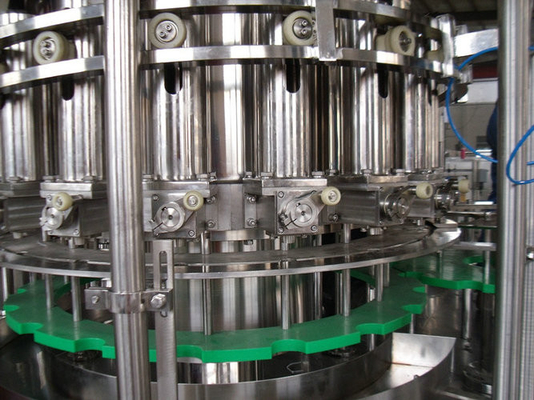

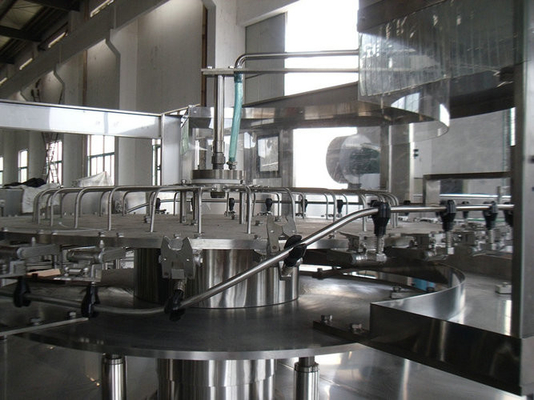

Automated Liquid Tea Drink Juice Filling Machine for PET / Glass Bottle

Automated Liquid Tea Drink Juice Filling Machine for PET / Glass Bottle

Quick Detail:

• Type: Double Filling Machine (Juice pulp filling and juice filling)
• Condition: New
• Application: juice with pulp
• Packaging Type: Bottles,
• Automatic Grade: Automatic
• Driven Type: Electric
• Voltage: 220/380V
• Power: 2-10KW
• Place of Origin: Jiangsu, China (Mainland)
• Brand Name: Watechk
• Model Number: BRGF Series
• Weight: 3000-12000kg
• Certification: CE, ISO, SGS, BV
• After-sales Service Provided: Engineers available to service machinery overseas
• Material: High quality SUS304 stainless steel
• Filling Principle: Balanced Pressure Filling
• Number of Filling Heads: 12,18,24,32,40
•  Shipment: by Sea/Train

Description:

4-in-1 full automatic PET bottle juice pulp filling machine.The machine consists four parts: 1 rinser 2. pulp filler 3. juice filler 4. capper.Filling accurately with pulp floating evently, and capacity from 2000B/H up to 15000B/H.

(1) Material: Stainless steel 304 /316

(2) Capacity: 3000-21000B/H(can be improved)

(3) Bottles type: PET, PVC, PP, Glass bottles.

(4) Bottle Hight: 150-340 mm

Electrical parts:

PLC programming controller      Mitsubishi/Siemens

Transducer                     Mitsubishi/Siemens

Touch screen monitor            Mitsubishi/Siemens

Main electrical components       SCHNEIDER

Pneumatic component           AIRTAC/FESTO

Specifications:

Automatic Juice with Pulp Filling Machine--Main data

Competitive Advantage:

(1) Full filling is to avoid bottles from sinking after the bottles cooling off, and to decrease dissolved oxygen to the utmost extent.

(2) Reasonable structured storage hopper and material supply system keep material in the constant flow speed, constant pressure and without frothing. Usually high position tank is adopted.

(3) The storage hopper has the characteristics of gas discharge, full sealing and temperature detecting. In moderate and high speed production line, the material distributor replaces the big liquid tank to realize the complete CIP.

(4) Sanitary filling head system is of umbrella structure, high filling speed.

(5) Perfect filling temperature control system.

(6) Return tank system has the function of supplying the material automatically.

(7) Perfect CIP system
