Electric 3 In 1 Washing Filling Capping Machine Production Line for Round PET Bottle

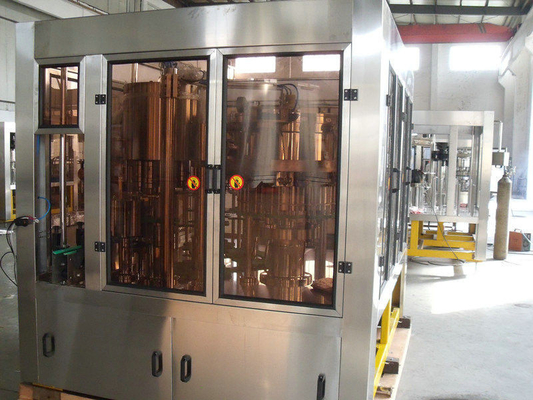

Electric 3 In 1 Washing Filling Capping Machine Production Line for Round PET Bottle


Quick Detail:


(1)  Electrical and Pneumatic Components

• Transducer:Mitsubishi
• PLC:  Mitsubishi
• Touch Screen:   from Taiwan
• Contactor: Delixi
• Proximity Switch:Omron
• Electric Switch:   Omron
• Cylinder:  Airtac
• Motor:   Wannan Motor



(2) Suitable Bottle and Cap Type

1．Bottle: round or square PET bottle
2．Bottle Size: DiameterΦ50-Φ90mm, Height 150－320mm, diameter of bottle mouth Φ20－Φ35mm
3．Cap : plastic screw cap
4．Cap size:out diameterΦ25－Φ35mm,cap height 15－25mm

(3) Main Technical Parameters

1．Production capacity: 500ml 2500B/h;
2．Working positions: washing 12 heads,filling 12 heads, capping 4 heads
3．Filling conditions: Balanced Pressure Filling
4. Material: Stainless Steel 304

(4) Motor Power

• main motor:   2.2kw
• Cap ordering device motor:  0.18kw
• washing pump: 0.37kw
• filling pump:   0.55kw
• conveyor motor: 0.55kw
• air conveyor motor:  0.75kw


Description:

(1) carbonated drink filling line includes: Washing-filling-capping 3 in 1 machine, lamp inspection, label shrinking machine, inkjet printer, hot shrink film packer and conveyors. It is a full automatic production line.

(2)The carbonated drink washing-filling-capping 3-in-1 machine is mainly used in the carbonated beverage filling operations. The three functions of bottle washing, filling and capping are composed in one body of the machine. The whole process is automatic.

(3)The carbonated drink washing-filling-capping 3-in-1 machine is used in filling carbonated drinks into bottles made of polyester and plastics. The handle of the machine can be freely and conveniently turned to adjust the machine to fill various types of bottles.

(4)The carbonated drink washing-filling-capping 3-in-1 operation is faster and more stable because the micro pressure filling operation of the new type is adopted. There the output and benefit of the machine is higher than the machinery of the same specifications.

(5)The advanced OMRON/MITSUBISHI programmed controller (PLC) is adopted to control the machine to run automatically while a transducer is used in the bottle -entering chains to adjust speeds and coordinated with the transducer of the main machine to make the operations of moving bottle forward steadily and reliably.

(6)It is convenient to operate with higher automation because every part of the machine is inspected to run with photo electricity, on the bases, the filling parts of the machine can be changed into filling methods of lower vacuum.

Specifications:

Automatic Carbonated Drink Washing-Filling-Capping 3-in-1 Machine--Main data


Competitive Advantage of the Carbonated Drink Washing-Filling-Capping 3-in-1 Machine


1.Air Conveyor connects with bottle-in starwheels. Bottle neck holding transferred.

2.Clamp transferring technology varied bottle types.

3.With little abrasion. Stable Transferring. Easy to change bottles.

4.With ring type pressure bearing hydraulic cylinder.

5.With high filling speed and exact liquid level.

6.Excellent Stainless Steel. Electric Components are of world known brand. All achieve national sanitary standard.

7.The bottle-out starwheel is of screwdown shape. No need to adjust transferring chain's height to different bottles.

8.Easy to operate and maintain.

9.PLC and transducers and other main electric parts are of world famous brands, such as OMRON, MITSUBISHI etc.

Application of the carbonated drink washing-filling-capping 3-in-1 machine




Flowchart of the carbonated drink washing-filling-capping 3-in-1 machine
